產品詳細
BLDC3530
產品分類:
公司秉承“持續為客戶提供中高端產品和服務”的理念 。組建了一支技術精湛、管理高效的研發團隊，以設計高效價優的電機產品為己任，竭誠為客戶提供優質的高性價比電機。
關鍵字:
筋膜槍
BLDC3530
|

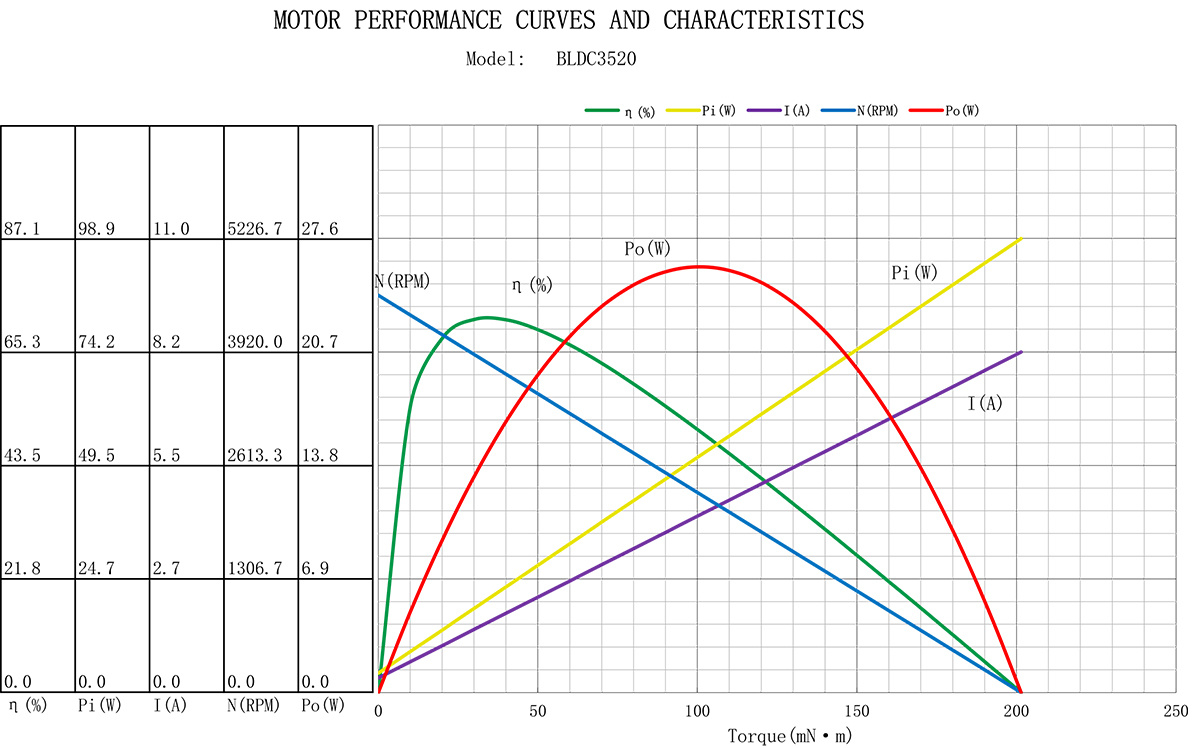

Performance(性能): |
|||
|
Voltage (電壓): |
12.0 |
V |
|
|
At No Load(空載): |
|
|
|
|
|
Speed(轉速): |
4900.0 |
RPM |
|
|
Current(電流): |
0.350 |
A |
|
At Stall Extrapolation(堵轉): |
|
|
|
|
|
Stall Torque(堵轉力矩): |
201.44 |
mN·m |
|
|
Current(電流): |
8.244 |
A |
|
|
|
|
|
|
At Max Efficiency(最大效率): |
|
|
|
|
|
Speed(轉速): |
4062.9 |
RPM |
|
|
Current(電流): |
1.699 |
A |
|
|
Torque(力矩): |
34.415 |
mN·m |
|
|
Output(功率): |
14.64 |
W |
|
|
Efficiency(效率): |
71.8 |
% |
|
At Max Output(最大輸出功率): |
|
|
|
|
|
Speed(轉速): |
2450.0 |
RPM |
|
|
Current(電流): |
4.297 |
A |
|
|
Torque(力矩): |
100.722 |
mN·m |
|
|
Output(功率): |
25.84 |
W |
|
|
Efficiency(效率): |
50.1 |
% |
