產品詳細
BLDC4820
產品分類:
公司秉承“持續為客戶提供中高端產品和服務”的理念 。組建了一支技術精湛、管理高效的研發團隊，以設計高效價優的電機產品為己任，竭誠為客戶提供優質的高性價比電機。
關鍵字:
電錘
電扳手
角磨機
BLDC4820
|

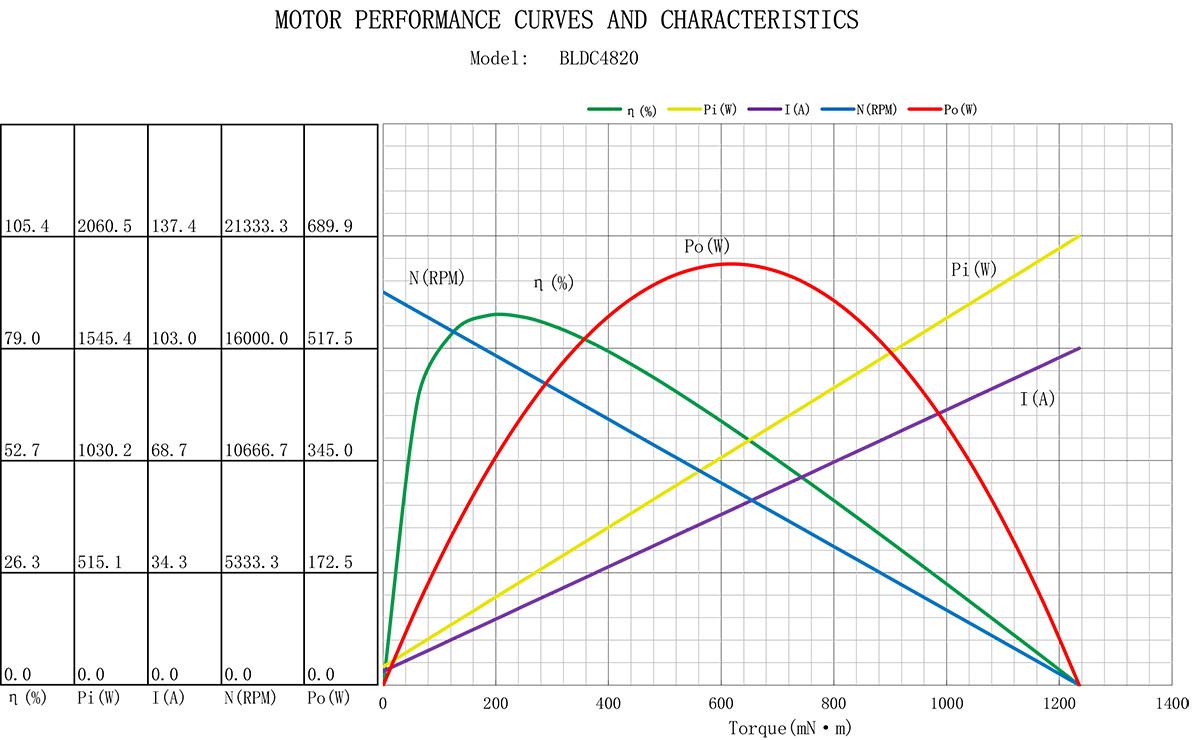

Performance(性能): |
|||
|
Voltage (電壓): |
20.0 |
V |
|
|
At No Load(空載): |
|
|
|
|
|
Speed(轉速): |
20000.0 |
RPM |
|
|
Current(電流): |
4.200 |
A |
|
At Stall Extrapolation(堵轉): |
|
|
|
|
|
Stall Torque(堵轉力矩): |
1235.29 |
mN·m |
|
|
Current(電流): |
103.024 |
A |
|
|
|
|
|
|
At Max Efficiency(最大效率): |
|
|
|
|
|
Speed(轉速): |
16640.2 |
RPM |
|
|
Current(電流): |
20.801 |
A |
|
|
Torque(力矩): |
207.518 |
mN·m |
|
|
Output(功率): |
361.62 |
W |
|
|
Efficiency(效率): |
86.9 |
% |
|
At Max Output(最大輸出功率): |
|
|
|
|
|
Speed(轉速): |
10000.0 |
RPM |
|
|
Current(電流): |
53.612 |
A |
|
|
Torque(力矩): |
617.647 |
mN·m |
|
|
Output(功率): |
646.82 |
W |
|
|
Efficiency(效率): |
60.3 |
% |
